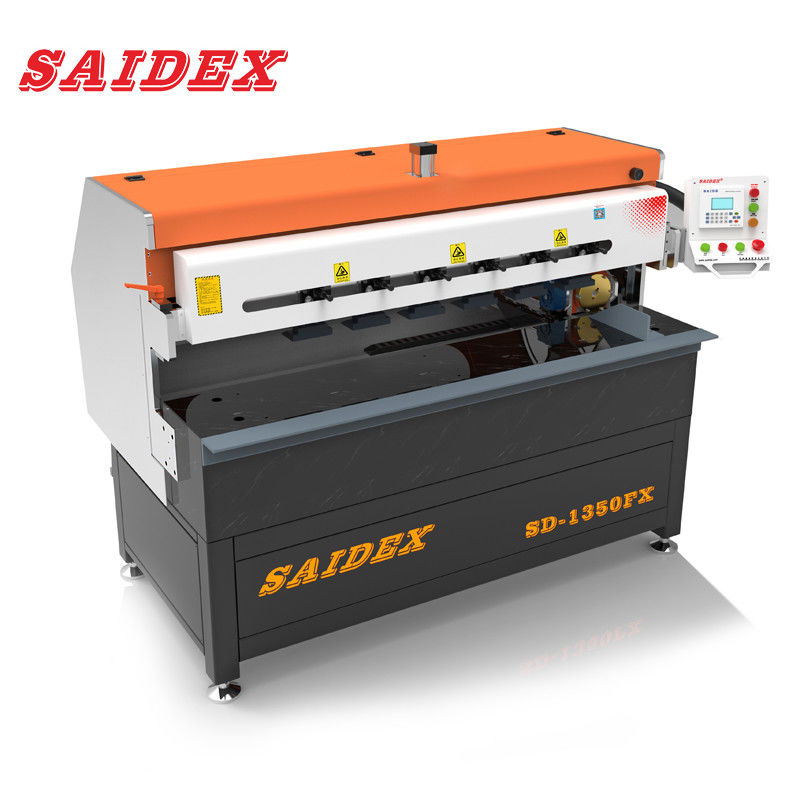

3kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines

3kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines

3kw servo motor acrylic edge polisher

1350mm PMMA plastic polishing machine

acrylic edge polisher for PC/PS

Luogo di origine:

Guangdong , Cina

Marca:

SAIDEX

Certificazione:

CE

Numero di modello:

SD-1350fx

Contattici
Chiedi un preventivo
Dettagli del prodotto
Misura lucidabile:
1350 mm(L)x120 mm(P)
Utilizzo:
Lucidatura del bordo acrilico
Peso:
1000 kg
Tipo di attrezzatura:
Macchina per lucidare acrilica
Imballaggio:
Scatola di legno
Tagliare AMGLE:
0-60 °
Attuale:
10-16a
velocità:
6000-12000 giri al minuto
Materiale della ruota di lucidatura:
Acrilico, PC, PS, PE, materiali isolanti
Colore:
Chiaro
Lunghezza di lucidatura:
1350 mm
Velocità della ruota di lucidatura:
6000 giri al minuto
Angolo di taglio:
0-60 °
Energia:
3KW
Garanzia:
Un anno
Evidenziare:

3kw servo motor acrylic edge polisher

,

1350mm PMMA plastic polishing machine

,

acrylic edge polisher for PC/PS

Termini di trasporto & di pagamento
Quantità di ordine minimo
1 set
Prezzo
Confirm price based on product
Imballaggi particolari
1p/ scatola di carta
Tempi di consegna
da negoziare
Termini di pagamento
T/T
Capacità di alimentazione
10000 set/set al mese
Descrizione di prodotto





Arcylic polisher:

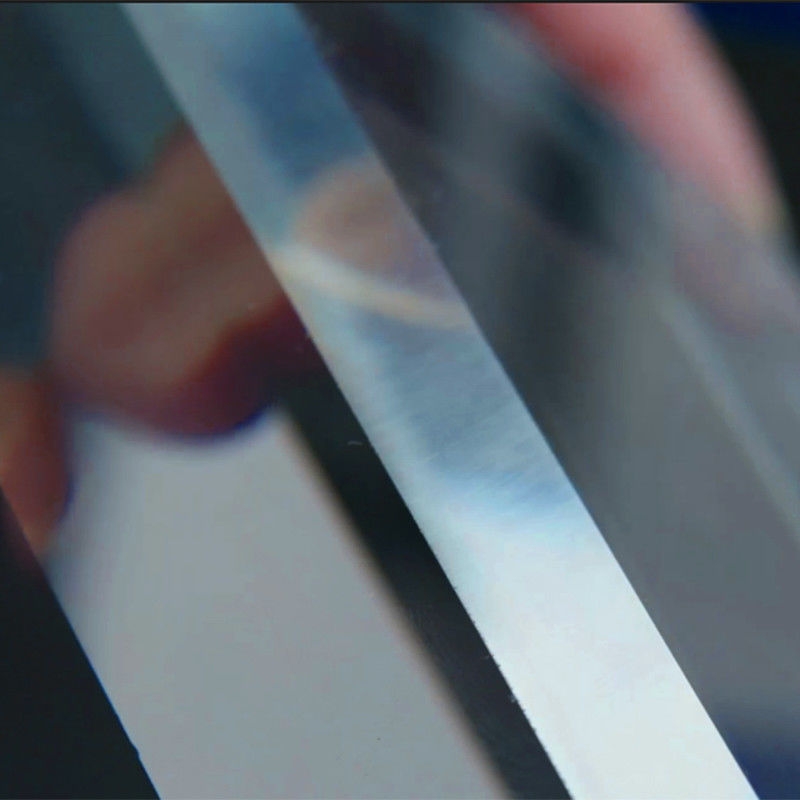

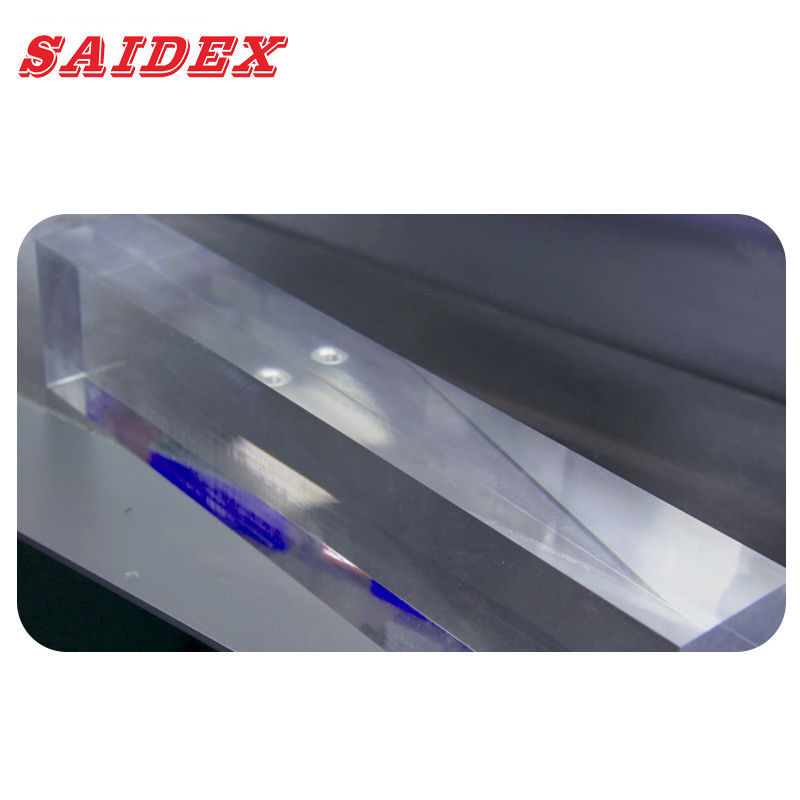

Acrylic polishing machine is a machine that uses the polishing knifes to cut and polish the edges of acrylic,it can achieves a mirror-like finish, providing unparalleled flatness and crystal-clear brilliance.



Widely used in acrylic, PMMA, PS, PC, PET, PE and other plastic plates and products sanding and polishing.

3kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 03kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 13kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 23kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 3

3kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 43kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 53kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 6

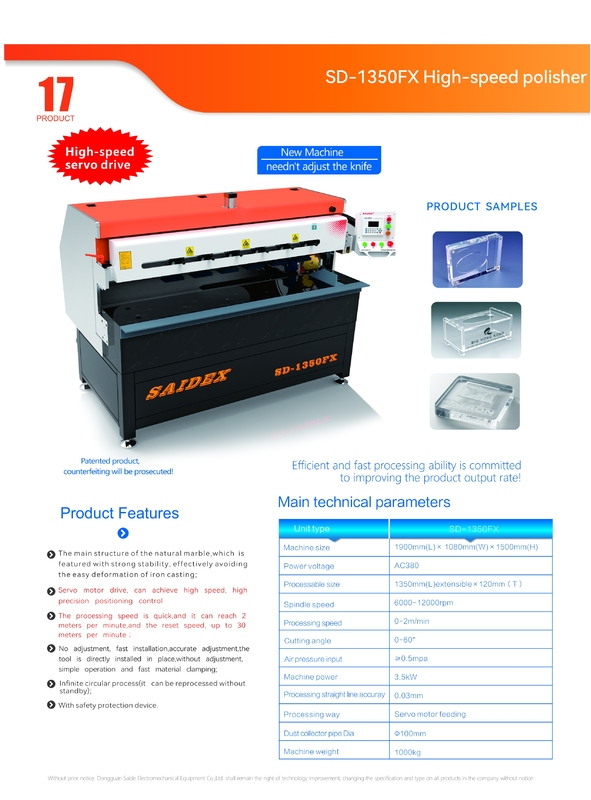

Product Features:

1.The main structure ofthe natural marble,which isfeatured with strong stability, effectively avoidinothe easy deformation ofiron casting;

2.Servo motor drive, can achieve high speed, high precision positioning control ;

3.The processing speed is quick,and it can reach 2 meters per minute,and the reset speed, up to 30meters per minute ;

4.No adiustment, fast installation,accurate adjustment,the tooi is directly installed in place,without adiustment.simple operation and fast material claming;

5.Infinite circular process(it can be reprocessed withoutstandby);With safety protection device;

6.With safety protection device.



Unit Type SD-1350FX
Machine Size 1900mm(L) x1080mm(W) x 1500mm(H)
Power Supply AC380
Work Area 1350mm(L) x120mm(T) (extensible)
Spindle Speed 6000-12000rpm
Processing Speed 0-2m/min
Cutting angle 0-60°
Air pressure input ≥0.5mpa
Machine power 3kw
Processing straight line accuray 0.03mm
Processing way Servo motor feeding
Dust collector pipe Dia φ100mm
Machine Wight 1000kg

3kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 73kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 83kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 9

3kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 103kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 113kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 123kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 13

3kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 14

About US:



Dongguan saide electromechanical equipment Co.,LTD.-is manufacturer specializing in the development and production Special processing acrylic plastic, insulating material equipment(PMMA,PS,MS,PE,PET,PC,PP,ABS,Bakelite, Epoxy Board) and acrylic processing tools.Years of actual production experience,frst-class service and professional technology have enable our company inthe leading position in the industry since its establishment in2008.



The company in line with "the quality first,the customer is supreme","excellent quality,reasonable price,honest trades has won high praise and the approval,and beloved by the domestic and overseas customers.The company adheres to the principle of"our efforts,customers benefit",we sincerely to provide satisfactory products and services with professional standards and unremitting efforts.



Our products have been exported to United States,Canada,Germany,France,Italy,Saudi Arabia,UAE,India,Singapore,Thailand,Indonesia,South Korea,Japan etc countries.
